Jungiamieji įžeminimo gnybtai PA
Gnybtai atitinka reikalavimus TU 34 13.10116-88.
GNYBTAS PA
 |
 |
|

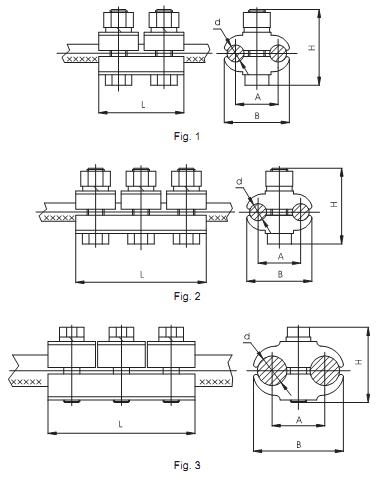

Tipas |
Pvz. |
Laido skresmuo, mm2
GOST839-80,
|
Laido diametras, mm
|
Išmatavimai, mm |
Svoris, kg
|
||||
|
А, АКP; АN, АNKP, АZ, АZKP; АS, АSKP, АSKS, АSК |
A |
B |
d |
L |
H |
||||
|
PА-1-1 |
1 |
16; 25; 35; 50; 16/2,7; 25/4,2; 35/6,2 |
5,1-9,0 |
18 |
28 |
8 |
45 |
35 |
0,08 |
|
PА-2-2 |
2 |
70; 50/8,0; 70/11 |
9,6-11,4 |
25 |
38 |
12 |
68 |
46 |
0,20 |
|
PА-3-2 |
2 |
95; 120; 95/16 |
12,3-14,0 |
30 |
47 |
15 |
90 |
52 |
0,30 |
|
PА-2-2А |
1 |
70; 50/8,0; 70/11 |
9,6-11,4 |
25 |
38 |
12 |
45 |
46 |
0,14 |
|
PА-3-2А |
1 |
95; 120; 95/16 |
12,3-14,0 |
30 |
47 |
15 |
58 |
52 |
0,20 |
|
PА-4-1 |
2 |
150; 185; 240; 70/72; 95/141; 120/27; 150/19; 150/24; 150/34; 185/24; 185/29; 185/43; 205/27 |
15,4-20,0 |
36 |
57 |
20 |
88 |
62 |
0,93 |
|
PА-5-1 |
240; 300; 350; 185/128; 240/32; 240/39; 240/56; 300/39; 300/48; 300/66; 300/67; 330/30 |
20,0-24,8 |
41 |
68 |
24 |
110 |
67.5 |
1,07 |
|
|
PА-6-1 |
3 |
400; 450; 500; 550; 330/30; 330/43; 300/204; 400/18; 400/22; 400/51; 400/64; 400/93; 450/56; 500/26; 500/27; 500/64 |
24,8-30,6 |
52 |
83 |
29 |
154 |
80 |
1.22 |
