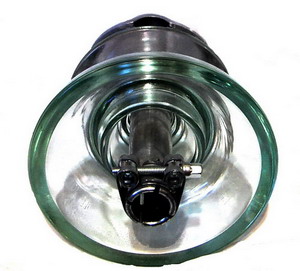

Insulator for 10 kV- SHTIZ-10B

Absence of latent defects inside insulated body. Each insulator passes optical control on absence of vials in a power head of insulator;
Control of insulators on a corner of polarization of passing light allows to guarantee absence of internal pressure, stable characteristics of electrical insulation, which are unattainable in ceramics;
It not appears micro cracks in the body of insulator during exploitation period;
It is easy to find the taint insulator across HV line. Insulator is applicable for all poluttion and humidity levels and is very popular in the HV lines for oil and railway sector. Metal clamp on the cap of insulator allows to complete wire fixation work faster.

Type of insulator



Ultimate Mechanial Strength of insulators, KN, not less

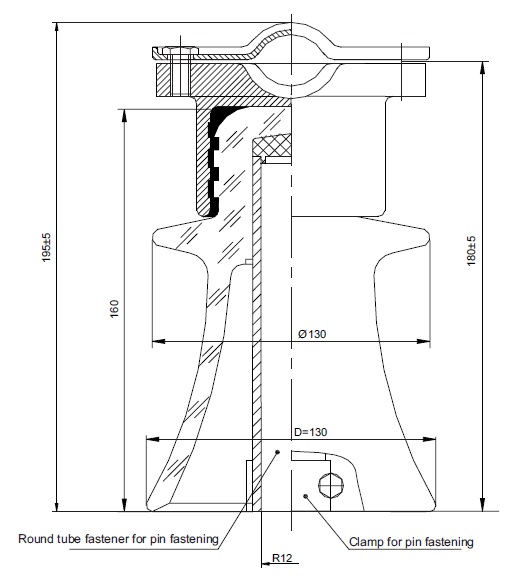

Diametr of glass shed (D), mm



Spacing, mm



Creepage distance, mm



Weight, kg



Voltage withstand, kV, not less

impulse

frequency 50 Hz, wet

radio interference

SHTIZ10B

13

130

195

300

4

80

40

40


SHTIZ10B
