High-voltage insulator SHS10
| Type of insulator | Nominal voltage, kV | Ultimate Mechanical Strength of insulators, KN, not less | Diametr of glass shed (D), mm | Height, mm | Creepage distance, mm | Weight, kg | Voltage withstand, kV, not less | ||
| impulse | frequency 50 Hz, wet | radio interference | |||||||
| SHS 10D | 10 | 12,5 | 130 | 160 | 280 | 1,35 | 75 | 40 | 40 |

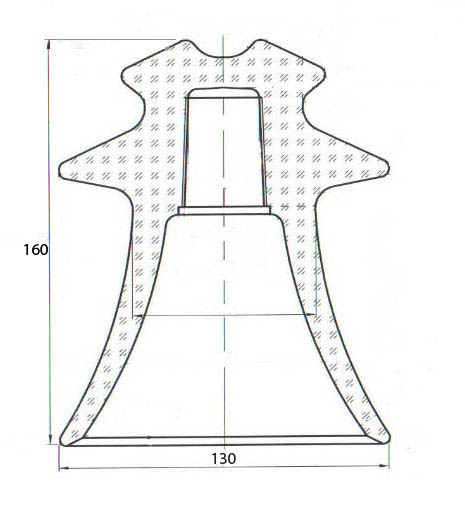

| SHS10 | .jpg) |
 |
